Hybrid Running Track(Spray Granular Surface)

Share:

Convenient construction, good leveling performance, the base layer can be formed in one construction, not easy to bubble, and strong weather adaptability.


Hybrid Running Track(Spray Granular Surface)

Product advantages



The spray adhesive has a 1:1 formula, which has strong granule wrapping and is not easy to fall off.


The adhesive content is high, and it is firmly bonded to the base layer and is not easy to delaminate.


The surface color is long-lasting and not easy to fade, and it has excellent wear resistance.


Solvent-free materials, odorless and environmentally friendly products, fully comply with the requirements of GB 36246-2018 standards.


Convenient construction, good leveling performance, the base layer can be formed in one construction, not easy to bubble, and strong weather adaptability.



Physical and chemical properties


Physical properties
Inspection itemsTensile strengthElongation at break
( % )
Shock absorptionVertical deformation
( mm )
Sliding-resistance valueFlame retardant properties
Detecting data1.32MPA320%35%-50%1.7mm88BPN,20℃Level I


Chemical properties
ProjectStandardDetecting data
 Total Volatile Organic Compounds (TVOC): 0.8 The sum of three phthalates (DBP, BBP, DEHP): Not detectedBenzene: Not detected
Formaldehyde: 0.030The sum of three phthalates (DNOP, DINP, DIDP): Not detectedSoluble lead: Not detected
Toluene, xylene, and ethylbenzene total: 0.14,4'-Diamino-3,3'-dichlorodiphenylmethane (MOCA): Not detectedSoluble cadmium: Not detected
Odor level ≤ 3 gradesFree diphenylmethane diisocyanate (MDI): Not detectedSoluble chromium: Not detected
Carbon disulfide: Not detectedSum of 18 polycyclic aromatic hydrocarbons: Not detectedSoluble mercury: Not detected
Short-chain chlorinated paraffins (C10-C13): Not detectedFree toluene diisocyanate (TDI) and free hexamethylene diisocyanate (HDI) total: not detectedBenz[a]pyrene: Not detected


Construction process

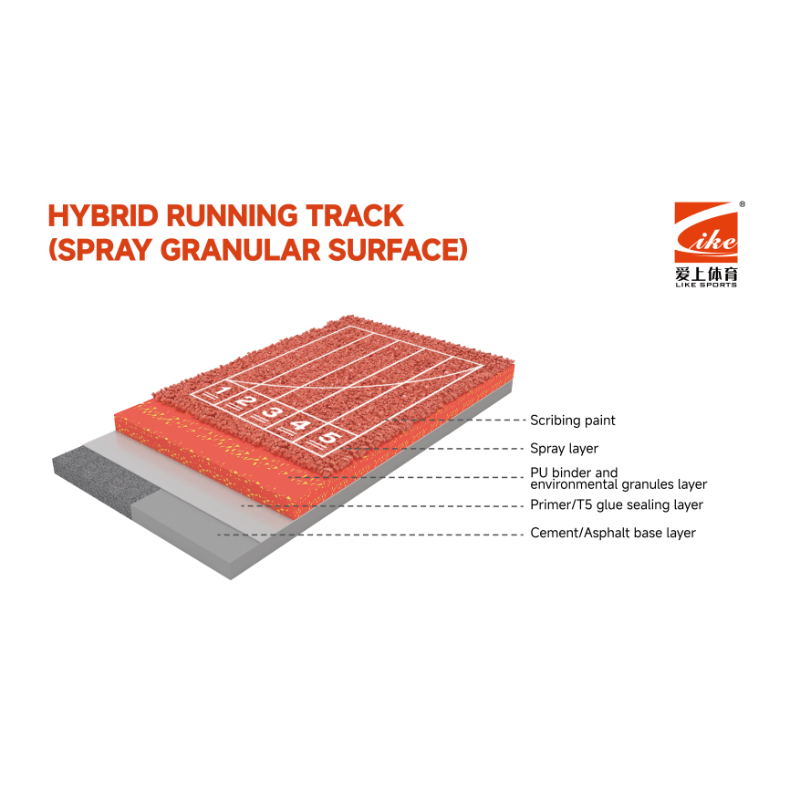

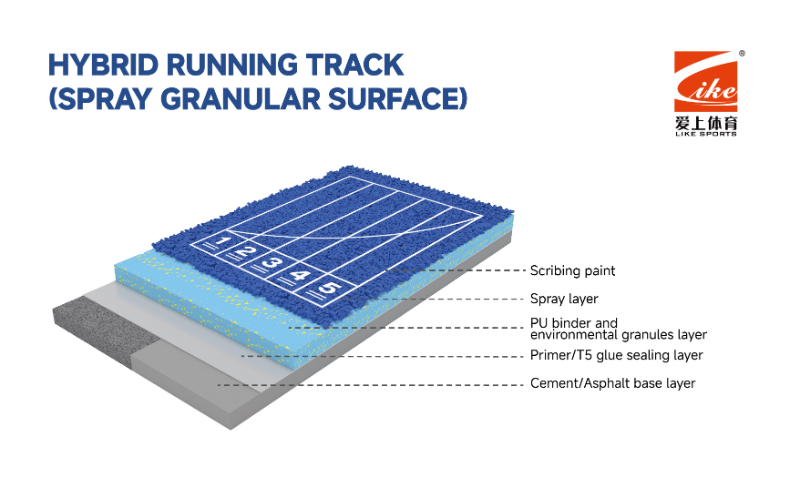

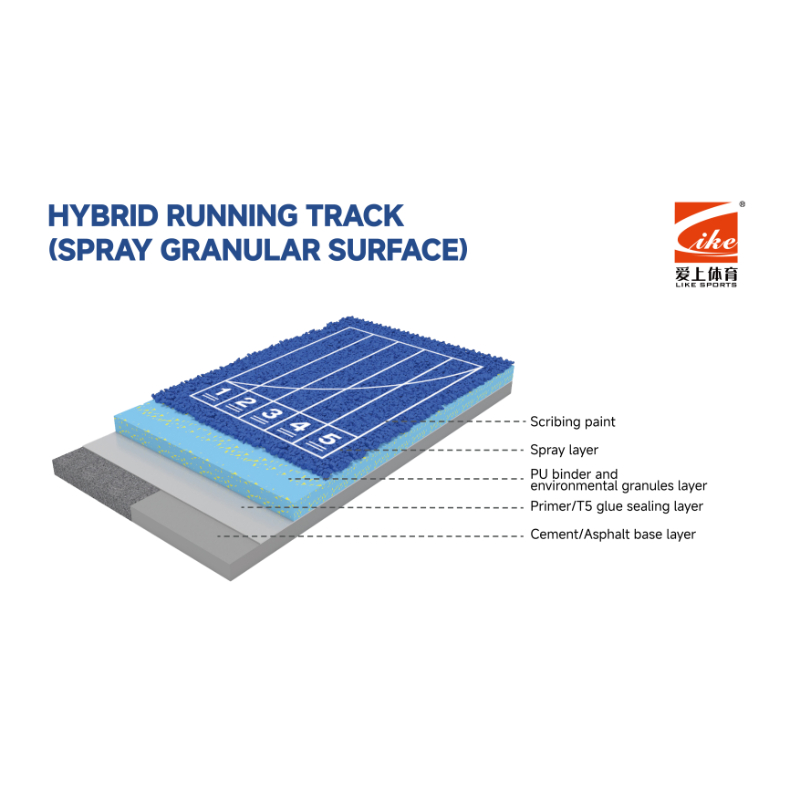

The base layer inspection - The base layer treatment - The base layer sealing- Glue and granules layer construction- Grinding and repairing - Granular surface layer construction - Scribing line - Site acceptance

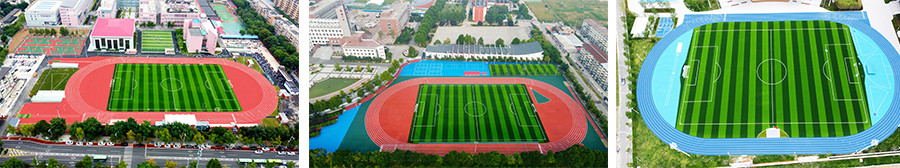

Projects Show


Hybrid Running Track(Spray Granular Surface)


Honors and Qualification


Hybrid Running Track(Spray Granular Surface)
