Convenient construction, good leveling performance, the base layer can be formed in one construction, not easy to bubble, and strong weather adaptability.
Water‑Permeable Running Track, facility owners invest in a running surface that excels in drainage, durability and environmental responsibility. Its combination of water‑permeable design, strong bonding technology and multi‑venue applicability makes the Water‑Permeable Running Track a forward‑looking choice for modern sports infrastructure.
The surface spray adhesive has a unique 1:1 formula design, high adhesive content, excellent strength and not easy to drop granules.
The surface spray adhesive uses imported pigments, excellent weather resistance, and long-lasting color.
The single-component glue has a high adhesive content and strong granule wrapping, making the granules more tightly bonded.
The material has low viscosity and is easy to apply in winter.
100% solvent-free material, odorless and environmentally friendly products, fully in line with the national standard GB 36246-2018.
| Physical properties | ||||||
| Inspection items | Tensile strength | Elongation at break ( % ) | Shock absorption | Vertical deformation ( mm ) | Sliding-resistance value | Flame retardant properties |
| Detecting data | 0.58MPA | 100% | 35%-50% | 2mm | 89BPN, 20℃ | Level I |
| Chemical properties | ||
| Project | Standard | Detecting data |
| Total Volatile Organic Compounds (TVOC): 0.1 | The sum of three phthalates (DBP, BBP, DEHP): Not detected | Benzene: Not detected |
| Formaldehyde：0.08 | The sum of three phthalates (DNOP, DINP, DIDP): Not detected | Soluble lead: Not detected |
| Toluene, xylene, and ethylbenzene total: 0.003 | 4,4'-Diamino-3,3'-dichlorodiphenylmethane (MOCA): Not detected | Soluble cadmium: Not detected |
| Odor level ≤ 3 grades | Free diphenylmethane diisocyanate (MDI): Not detected | Soluble chromium: Not detected |
| Carbon disulfide: Not detected | Sum of 18 polycyclic aromatic hydrocarbons: Not detected | Soluble mercury: Not detected |
| Soluble mercury: Not detected | Soluble mercury: Not detected | Soluble mercury: Not detected |

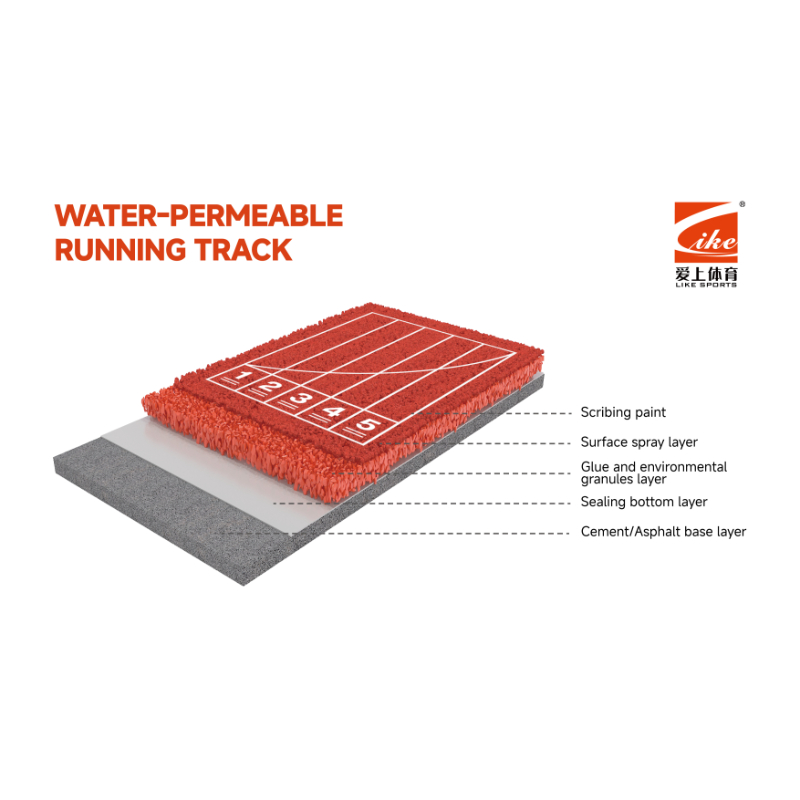

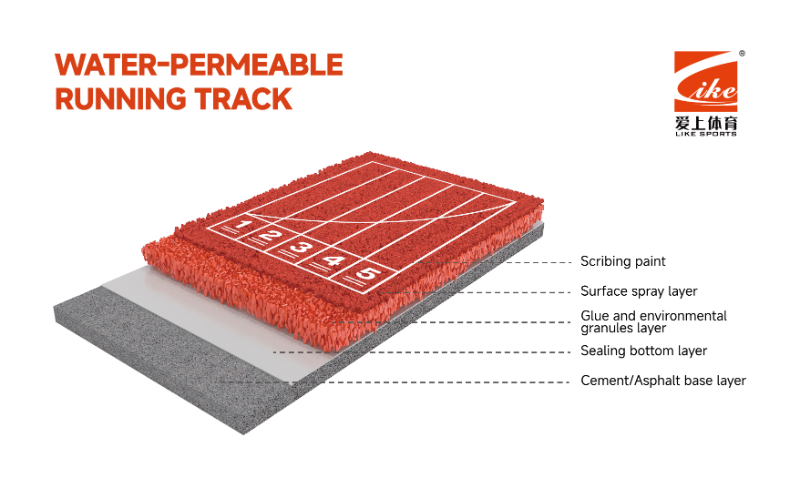

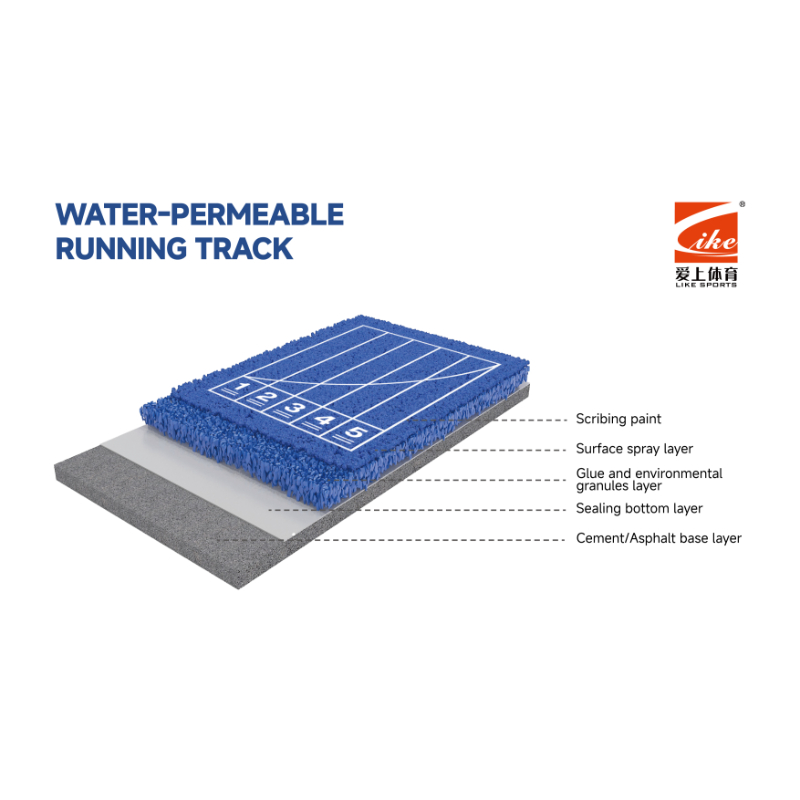

The base layer inspection - The base layer treatment - The base layer sealing -Glue and granules layer construction - Surface layer spraying -Scribing line - Site acceptance

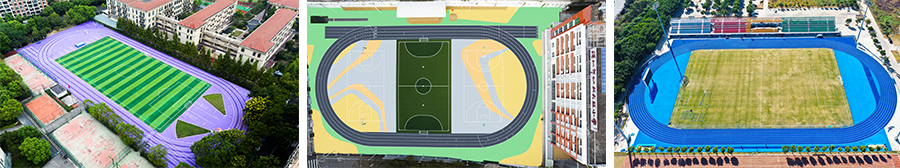

Stadiums and Competitive Sports Venues
Water‑Permeable Running Track is specifically designed for stadiums and professional athletics arenas where performance and safety are critical. Its permeable running track surface allows rainwater to drain quickly through the track, minimizing pooling and slip risks. This drainage running track design ensures athletes can maintain optimal traction and consistent performance even after heavy rain, while providing reliable shock absorption and long-term durability for sprints, hurdles, and relay competitions.
Schools and Universities
Educational facilities benefit from the Water‑Permeable Running Track’s eco-friendly and low-maintenance design. The permeable running track surface reduces the risk of accidents caused by wet conditions while protecting students’ joints with uniform shock absorption. Its adaptability allows installation over asphalt or concrete, making it suitable for both new constructions and renovation projects. The Water‑Permeable Running Track delivers a safe, sustainable, and all-weather running track for daily PE classes and training programs.
Community and Public Sports Facilities
Water‑Permeable Running Track is perfect for jogging paths, park tracks, and community fitness areas. Its water-permeable athletics track surface maintains usability after rainfall, providing a safe and reliable surface for heavy foot traffic. The hybrid PU/granule composition ensures durability, low maintenance, and long service life, making the Water‑Permeable Running Track a cost-effective and sustainable solution for public sports venues.
Renovation Projects and Upgrades
A key feature of the Water‑Permeable Running Track is its ability to upgrade existing asphalt or concrete surfaces. The spray‑granular hybrid layer bonds effectively to old tracks, enhancing safety, improving drainage, and extending the life of the athletics surface without full reconstruction. This makes the Water‑Permeable Running Track an efficient, high-performance, and all-weather solution for modern sports facilities.
