Polymer propyl ester composite emulsion water-based topcoat, good bending property and strong adhesion.
Nano‑silicon PU Sports Court offers an advanced solution for schools, universities, community sports facilities, and professional arenas. Its nano‑silicon PU court surface combines enhanced elasticity, superior wear resistance, and excellent shock absorption, providing a safe and consistent playing experience. The Nano‑silicon PU Sports Court is engineered for indoor and outdoor use, maintaining durability and color stability under heavy foot traffic and varying weather conditions.
Polymer propyl ester composite emulsion water-based topcoat, good bending property and strong adhesion.
The surface layer is tough and dense, not easily scratched by hard objects, and has strong anti-aging performance.
Solvent-free materials, odorless and environmentally friendly products, fully in line with the requirements of GB 36246-2018 national standards.
Elastic PU binder layer has excellent tensile performance, provides comfortable foot feel, and protects ankle safety.
The adhesive layers are firmly bonded to effectively prevent shedding and cracking caused by foundation shrinkage.
Convenient construction, good leveling performance, strong weather adaptability, can scrape 8mm at a time without blistering.
| Physical properties | |||||
| Inspection items | Tensile strength | Elongation at break ( % ) | Vertical deformation ( mm ) | Sliding-resistance value | Flame retardant properties |
| Detecting data | 1.2MPA | 386% | 1.1mm | 90BPN,20℃ | Level I |
| Chemical properties | ||
| Project | Standard | Detecting data |
| Total Volatile Organic Compounds (TVOC): 0.7 | The sum of three phthalates (DBP, BBP, DEHP): Not detected | Benzene: Not detected |
| Formaldehyde：0.042 | The sum of three phthalates (DNOP, DINP, DIDP): Not detected | Soluble lead: Not detected |
| Toluene, xylene, and ethylbenzene total: 0.1 | 4,4'-Diamino-3,3'-dichlorodiphenylmethane (MOCA): Not detected | Soluble cadmium: not detected |
| Odor level ≤ 3 grades | Free diphenylmethane diisocyanate (MDI): Not detected | Soluble chromium: Not detected |
| Carbon disulfide: Not detected | Sum of 18 polycyclic aromatic hydrocarbons: Not detected | Soluble mercury: Not detected |
| Short-chain chlorinated paraffins (C10-C13): Not detected | Free toluene diisocyanate (TDI) and free hexamethylene diisocyanate (HDI) total: not detected | Benz[a]pyrene: Not detected |

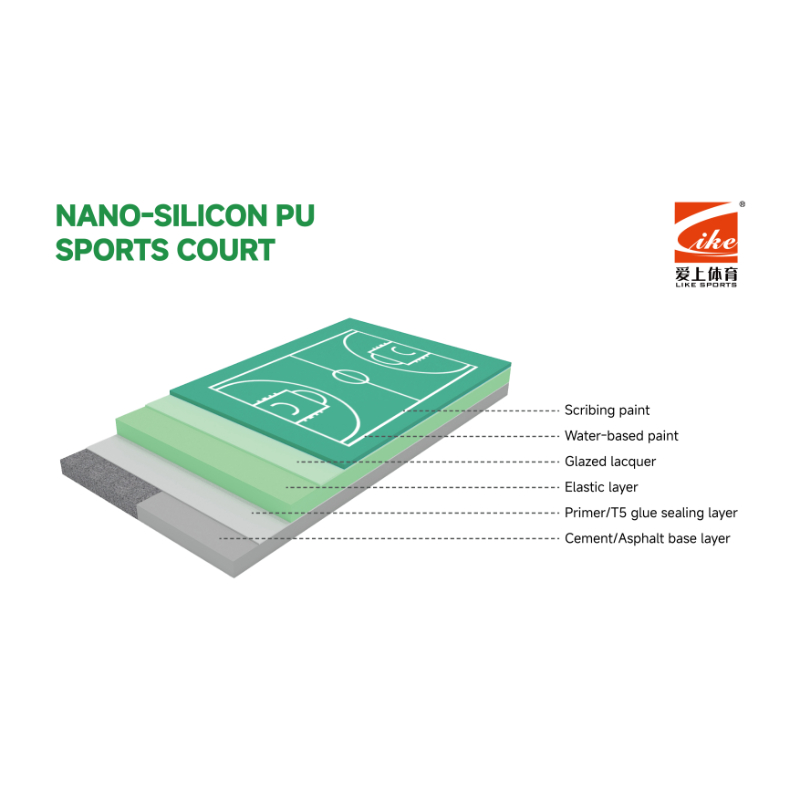

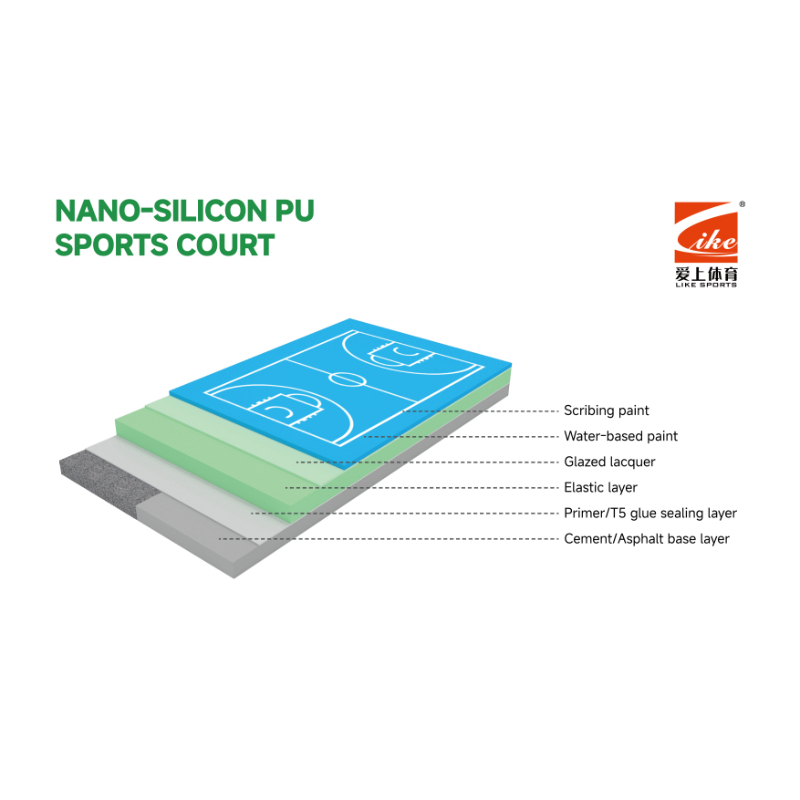

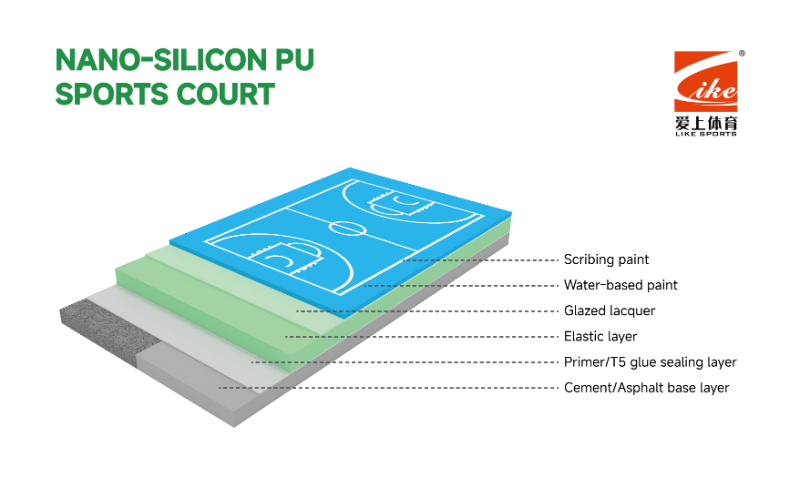

The base layer inspection - The base layer treatment-Primer/T5 glue construction- Elastic layer construction - Grinding and repairing - Top coating layer construction - Scribing line - Site acceptance

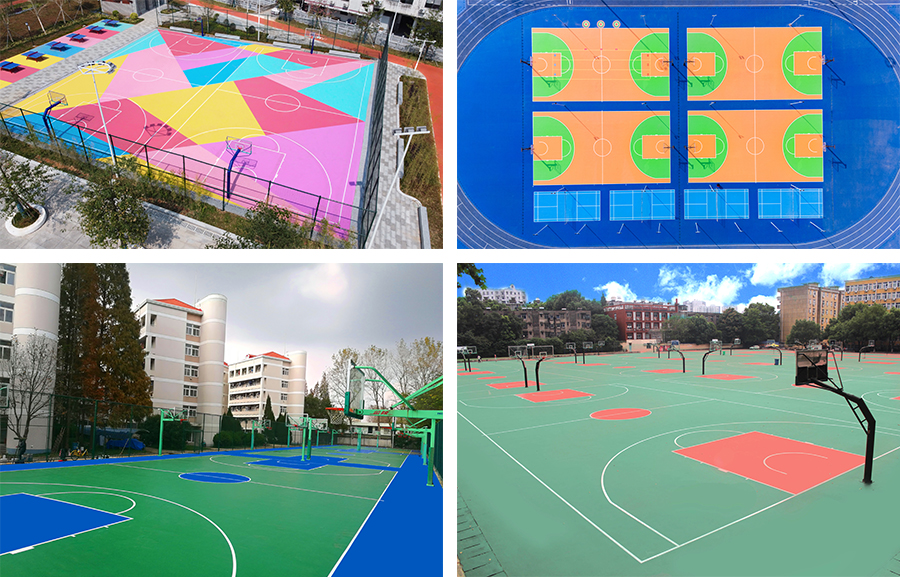

Educational Facilities
In schools and universities, the Nano‑silicon PU Sports Court supports PE classes, training sessions, and competitions with a nano‑silicon PU court surface that reduces joint impact while ensuring reliable traction. Its resilient structure allows easy maintenance and long-term performance, making the Nano‑silicon PU Sports Court a cost-effective choice for student athletic programs.
Community and Public Sports Areas
The Nano‑silicon PU Sports Court is ideal for public parks, community fitness zones, and multi-purpose courts. The surface provides excellent grip, consistent rebound, and all-weather usability. Facility managers appreciate the Nano‑silicon PU Sports Court for its low maintenance, durability, and ability to withstand heavy traffic while delivering a high-quality PU sports court system.
Professional and Commercial Venues
For professional sports centres and commercial courts, the Nano‑silicon PU Sports Court ensures uniform performance and surface stability. Its PU sports court system allows for fast installation and renovation over existing asphalt or concrete surfaces. The Nano‑silicon PU Sports Court guarantees a long-lasting, durable sports court surface that meets modern safety and performance standards.
